20' x 5" x .188" - Satin Finish
Compact and durable, the 20-foot model is ideal for storefronts, schools, and smaller facilities where space or wind exposure is limited. Despite its shorter height, it delivers the same internal halyard security and premium construction as larger models. Featuring a classic, maintenance-friendly aluminum finish that highlights the clean lines of the pole while offering long-lasting resistance to corrosion and weathering.
**NOTE: This product carries a "to-ship" lead time of 16-22 weeks. Please plan accordingly before ordering!

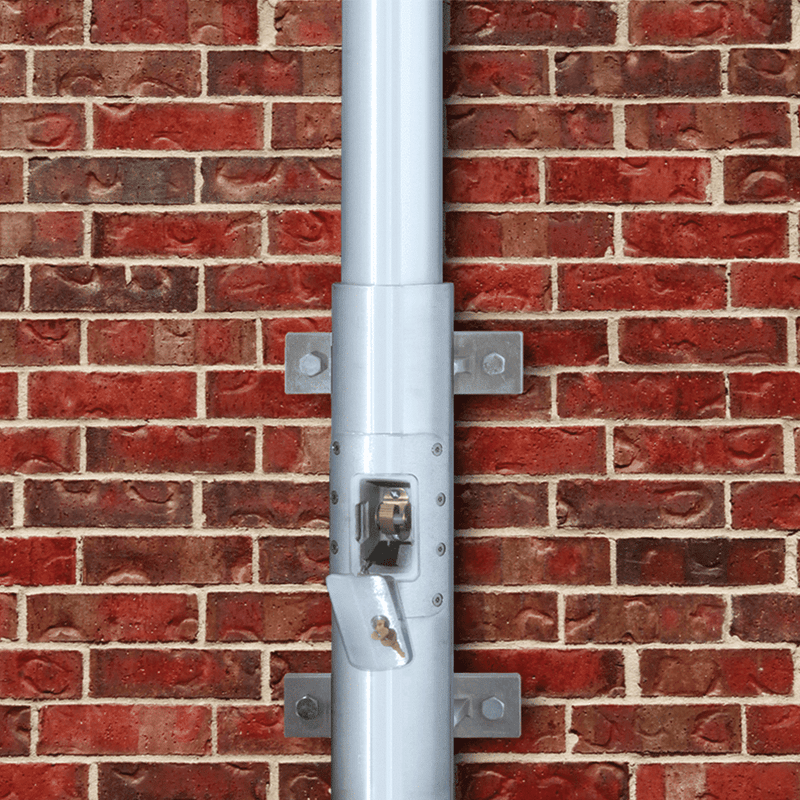

Internal Vertical Wall Mount Flagpole with Cam Cleat
Bring the security and clean appearance of an internal halyard system to your wall-mounted installation. The Internal Vertical Wall Mount Flagpole with Cam Cleat combines the refined aesthetics of our in-ground internal halyard flagpoles with the convenience and strength of a vertical wall mount design.
Unlike standard external wall mounts that rely on exposed rope halyards and cleats, this design conceals the halyard within the flagpole, offering a sleek, tamper-resistant solution that’s ideal for commercial buildings, institutions, or any location requiring a professional look and added security.
Key Features
-
5" Butt Diameter Shaft – Rugged aluminum construction for exceptional strength and stability.
-
Patented Heavy-Duty Gold Anodized Aluminum Ball – Corrosion-resistant, elegant finish.
-
Cast Aluminum Revolving Truck – Equipped with sealed stainless steel bearings, aluminum spindle, cast brass exit bushing, and a removable hood for smooth, reliable rotation.
-
Complete Internal Halyard Assembly –
-
5/16" #10 Polyester Rope Halyard
-
Two stainless steel swivel flagsnaps with neoprene covers
-
Patented plastic-coated counterweight
-
Dual beaded retainer rings
-
Heavy-duty shock spring assembly (for 8’x12’ flags and larger)
-
Cam Cleat System – Securely holds the halyard in place and allows for effortless flag raising and lowering.
-
Reinforced Raised Door Frame – Houses a flush-mount access door with lock and keys for tamper protection.
-
Premium Bracket Assemblies – Dual upper and lower aluminum brackets feature eight total mounting bolts and internal set screws for maximum strength and rigidity.
Precision Engineered Mounting System
The cam cleat assembly is mounted within the lower bracket—not the flagpole shaft—making halyard access easy and intuitive. The pole slides through the upper bracket and into the lower bracket, resting securely on an internally welded ring above the cam cleat.
Both bracket assemblies are built for durability and long-term performance, ensuring the flagpole remains stable and secure under wind load and daily operation. A secondary retainer ring and connecting link are included to help lower the flag to the top of the upper bracket when needed.
