20' x 5" x .188" - Satin Finish
Compact and reliable, the 20-foot model is perfect for storefronts, schools, and smaller structures. It offers full internal winch functionality and premium durability in a space-conscious design. Featuring a classic brushed aluminum finish offering long-term weather resistance and a timeless, professional appearance.
**NOTE: This product carries a "to-ship" lead time of 16-22 weeks. Please plan accordingly before ordering!

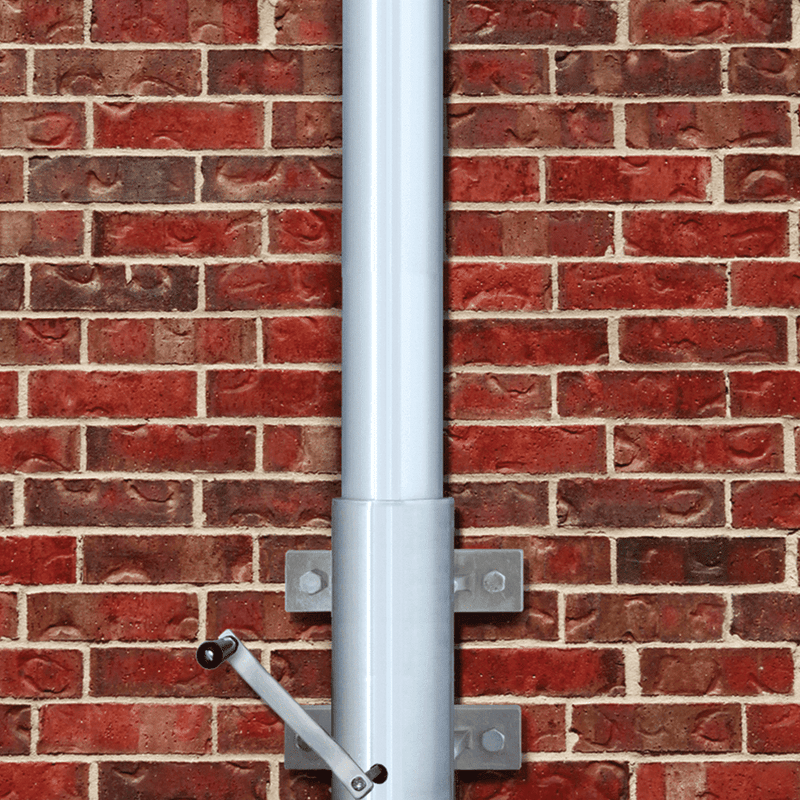

Internal Vertical Wall Mount Flagpole with Winch
Combine security, convenience, and refined design with the Internal Vertical Wall Mount Flagpole with Winch. This model incorporates the same winch and stainless-steel cable system used in our premium ground-set flagpoles—now engineered for a vertical wall mount application.
The result is a tamper-resistant, internal halyard flagpole that delivers both unmatched durability and architectural appeal. With the halyard system completely concealed inside the shaft, the flagpole maintains clean lines while preventing unauthorized access or interference.
Key Features
-
5" Butt Diameter Shaft – Heavy-duty aluminum construction for maximum strength and stability.
-
Patented Heavy-Duty Gold Anodized Aluminum Ball – Corrosion-resistant and built to last.
-
Cast Aluminum Revolving Truck – Equipped with sealed stainless steel bearings, an aluminum spindle, cast brass exit bushing, and removable hood for smooth, reliable flag rotation.
-
Complete Internal Halyard System –
-
Stainless steel wire cable halyard assembly
-
Two stainless steel swivel flagsnaps with neoprene covers
-
Patented plastic-coated counterweight
-
Dual beaded retainer rings
-
Heavy-duty shock spring assembly (for 8’x12’ flags and larger)
-
Stainless Steel Winch Assembly – Mounted securely to an internal platform and operated by a removable hand crank for safe, controlled flag adjustment.
-
Precision Engineered Bracket System – Dual aluminum brackets with eight total mounting bolts and internal set screws provide superior attachment strength and stability.
Maintenance-Friendly, Secure Design
The winch platform is mounted within the lower bracket, allowing the flagpole shaft to slide through the upper bracket and rest upon an internally welded ring above the winch assembly. The winch and platform can be easily removed for maintenance by releasing a single tamper-proof mounting screw.
Like all our premium flagpoles, this model includes a secondary retainer ring and connecting link to assist in lowering the flag to the top of the upper bracket. Every component is crafted to meet the same performance standards as our in-ground flagpoles, ensuring reliability and long service life.
